Hardware & Fittings
1.5'' Tri-Clamp, Stainless Steel
1.5" Stainless Steel Tri-Clamp
$8.00
1.5" EPDM Gasket
1.5 inch TC (tri-clamp) gasket made from FDA approved EPDM
$1.50
2" Tri-Clamp, Stainless Steel
A standard clamp for 2" TC ports Specifications: 2" TC 304SS
$9.00
2" EPDM Gasket
2 inch TC gasket made from FDA approved EPDM
$2.00
Silicone Gasket, 1.5'' TRI-CLVR
Silicone gasket for 1.5" TC fittings.
$1.50
1/2 in mpt x 3/8 in (1/4" ID) Barb - Stainless
1/2" MPT (male pipe thread) x 3/8" OD (1/4" ID) barb for 3/8" tubing. 304 Stainless Steel.
$5.99
1.5'' Tri-Clamp End Cap, Stainless Steel
A 1.5" end cap for capping an unused ferrule. Stainless Steel
$4.00
3/4'' NPT Flat Gasket
This is a replacement silicone gasket for weldless assemblies. 1.5" OD and 1" ID Fits around 3/4" npt nipples
$1.10
Weldless Stainless Spigot
This 304 stainless steel weldless ball valve assembly is a great option to adding a spigot to your kettle or mash tun. This assembly features a 1/2" female pipe thread on the inside that allows you to add a barb or threaded stainless screen to the inside of your kettle or mash tun. this weldless kit includes a 1/2" Full Port ball valve and a 1/2" barb. All fittings are made from 304 type stainless steel for a lifetime of corrosion free use. Full installation directions included.You will need to drill a 1" hole in your kettle or mash tun for installation of this weldless spigot. It is recommend to use a step drill bit for this.
$38.50
Female Brass Hose Fitting with 3/8" Barb
Brass, female garden hose fitting with 3/8" barb for tubing.
$3.99
1/2 in mpt x 5/8 in (1/2" ID) Barb - Stainless
1/2" MPT (male pipe thread) x 5/8" OD barb (1/2" ID) for 1/2" ID tubing. This fitting gets improved flow when using with pumps due to the larger 1/2" inner diameter. The 5/8" outer diameter of the barb creates a snug fit for your silicone tubing to stay put. 304 Stainless Steel
$7.20
Silicone Gasket, 2'' TRI-CLVR
Silicone gasket for a 2" tri-clamp fitting.
$2.20
1.5'' Tri-Clamp x 1/2 in MPT, Stainless Steel
This 1/2" MPT (male pipe thread) to 1.5" TC (tri-clamp) fitting is made from 304 stainless steel. Useful for converting from pipe thread to a tri-clamp connection.
$16.50
ForgeFit® Stainless Tri-Clamp Concentric Reducer - 2" x 1.5"
304 stainless steel 2" x 1.5" tri-clamp concentric reducer.
$32.99
Stainless Ball Valve - 1/2 in Full Port
304 stainless steel, 1/2" full port ball valve. Specifications: 304 Stainless Steel 1/2" FPT No locking clip 1000 psi rating
$18.95
2'' TC End Cap, Stainless Steel
Cap any 2” port with this stainless steel cap. Specifications: 2" TC 304SS
$5.00
Weldless Bulkhead 1/2'' FPT x 1/2'' FPT, Stainless Steel
Stainless steel weldless bulkhead. 1/2" FPT (female pipe thread) x 1/2" FPT (female pipe thread)
$16.99
Camlock Type F
Type F camlock disconnect fitting. Male camlock with 1/2" Male Pipe Thread (MPT). 304 Stainless steel construction. 150 psi working pressure.
$8.80
Female Brass Hose Fitting with 1/2" Barb
Brass, female garden hose fitting with 1/2" barb for tubing.
$6.99
$4.95
1.5'' Tri-Clamp Gasket - Teflon
1.5" Tri-Clamp Teflon gasket.
$3.50
1/2 in. mpt x 5/8 in. (3/8" ID) Barb - Stainless
1/2" MPT (male pipe thread) x 5/8" OD barb (3/8" ID) for 1/2" ID tubing. 304 Stainless Steel
$6.75
1.5" TC x 5/8" OD Barb
Not all hose barbs are created equal! The Spike Brewing special 1.5" TC x barb fitting features a shorter profile and over sized diameter barb. The over sized barb (5/8" OD) is specially designed for 1/2" Silicone tubing. The larger size does two things: It stretches the tubing over the barb creating a tight fit requiring no hose clamps. The inside diameter of our barb is 1/2" compared to standard 1/2" barbs which have a smaller 3/8" size. This creates a full port design and will not restrict flow going through the barb. Specifications: 304SS 1.5" TC x 5/8" barb 1/2" ID
$14.00
1.5'' Tri-Clamp 90 Elbow, Stainless Steel
1.5" tri-clamp 90° elbow made of 304 stainless steel.
$27.50
ForgeFit® Stainless Tri-Clamp - 1/2 in. FPT x 1.5 in. T.C.
Adapt a 1.5" tri-clamp connection to 1/2" Female Pipe Thread (fpt). Made from 304 stainless steel.
$14.99
Quick Connect Fitting - MQC x MNPT
Out of all the ways to attach silicone tubing to your brew kettle we like quick connect ball lock fittings the most. The ease of connecting/disconnecting and cleaning is unmatched by standard hose barbs, cam locks or tri-clamps. These fittings can easily be attached using one hand even with heavy brewing gloves. The inside diameter of our QC fitting is 1/2". This creates a full port design and will not restrict flow going through the barb. Specifications: 304SS 1/2NPT x QC 1/2" ID
$9.99

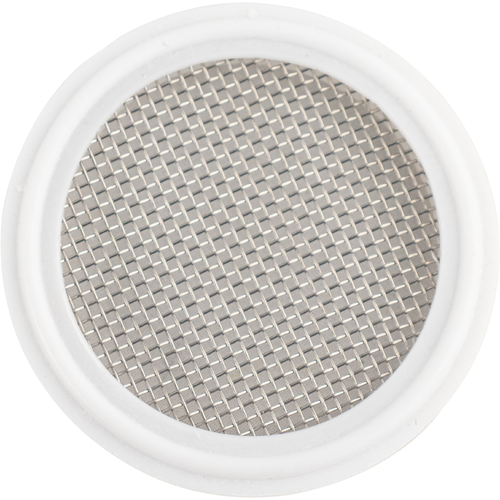

2'' Tri-Clamp Gasket with Mesh Screen
Teflon gasket with 304 stainless mesh screen for 2" tri-clamp connections. Can be used as a filter screen to trap large particulates passing through T.C. fittings. Often used for distillation to retain activated carbon for filtering neutral spirits or used in pot distillation to retain botanicals in the vapor stream. Fits 2" TC fittings.
$7.20
1.5'' Tri-Clamp x 1'' MPT, Stainless Steel
Stainless steel, 1.5" TC fitting to 1" MPT (male pipe thread).
$15.99
ForgeFit® Stainless Tri-Clamp Barb - 1/2 in. x 1.5 in. T.C.
1.5" Tri-Clamp to 1/2" barb connection. 304 Stainless Steel
$17.99

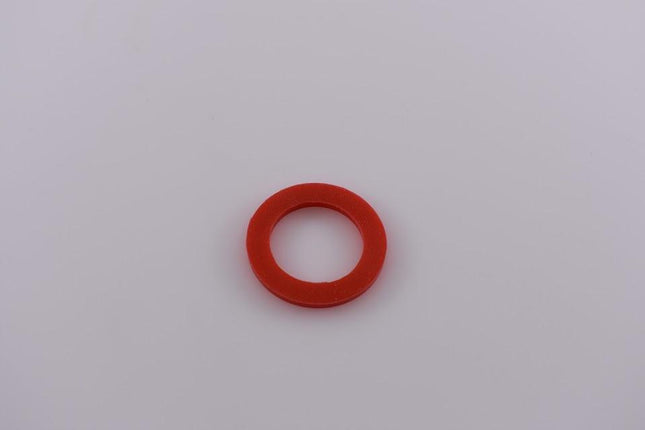

Silicone Flat Gasket
Inner Diam.0.81" Outer Diam.1.25" This silicone gasket is an excellent addition to any coupling. The food-grade silicone enhances the seal between metal components and can withstand temperatures over 450 °F.
$2.00
Quick Connect Fitting - FQC x Barb
Out of all the ways to attach silicone tubing to your brew kettle we like quick connect ball lock fittings the most. The ease of connecting/disconnecting and cleaning is unmatched by standard hose barbs, cam locks or tri-clamps. These fittings can easily be attached using one hand even with heavy brewing gloves. The over sized barb (5/8" OD) is specially designed for our 1/2" silicone tubing. The larger size does two things: It stretches the tubing over the barb creating a tight fit requiring no hose clamps. The inside diameter of our barb is 1/2" compared to standard 1/2" barbs which have a smaller 3/8" size. This creates a full port design and will not restrict flow going through the barb. Specificatioins: 304SS 5/8" barb x QC 1/2" ID
$17.00
12'' Stainless Steel Kettle Tube Screen
Helps filter debris when transferring wort from your kettle to your fermenter.
$9.00
1.5" TC Butterfly Valve
This 1.5” TC butterfly valve can be used on Spike+ kettles. This valve has a squeeze locking/trigger handle that allows for 180 degrees of motion and 13 locking positions.The handle is a special 'shorty' style which keeps a compact design. This handle is made from extremely durable glass reinforced nylon which is much lighter than metal handles. Specifications: 1.5" TC 304SS metal components FDA silicone seals Light and durable fiber reinforced nylon handle Squeeze trigger with 13 locking positions
$65.00
Quick Connect Fitting - MQC x FNPT
Out of all the ways to attach silicone tubing to your brew kettle we like quick connect ball lock fittings the most. The ease of connecting/disconnecting and cleaning is unmatched by standard hose barbs, cam locks or tri-clamps. These fittings can easily be attached using one hand even with heavy brewing gloves. The inside diameter of our QC fitting is 1/2". This creates a full port design and will not restrict flow going through the barb. Specifications: 304SS 1/2NPT x QC 1/2" ID
$9.99
Hose Stem, 1/4" MPT x 5/16" Barb
Barbed brass hose stem. 1/4" MTP (male pipe thread) x 5/16" Barb
$2.25
All-In-One PRV
Spike Brewing's The All-In-One PRV is fully adjustable from 0-15psi which allows for use with everything from pressure fermenting to spunding to pressure transfers to a keg! Not only does the All-In-One have an adjustable pressure release but it also has a set 1psi vacuum release! Specifications: Adjustable pressure relief from 0-15psi Built in vacuum release 1.5" tri-clamp connection (2) 1/4" NPT connections for gas post and pressure gauge Pressure gauge and ball lock gas post included Sanitizer cup with drain port Quick pressure relief plunger For use on up to 3bbl fermenters User Guide Link
$180.00
