Wort Chillers

This immersion style wort chiller is made from 25′ of ⅜″ diameter copper tubing. The chiller is around 9″ wide, so it fits easily in smaller brewing vessels. Two, 5′ vinyl tubing attachments are included for cold water input and warm water outflow. The cold water vinyl tubing terminates with a female garden hose thread (GHT) fitting that will attach to standard garden hose faucets and most utility sinks. Specifications: (2) 5' lengths of clear vinyl tubing (3) strong stainless steel hose clamps (1) 3/4" heavy duty female swivel garden hose fitting Chiller dimensions: Approximately 9" coil diameter 6.5" coil height 25' tubing x 3/8" outer diameter

Read more less

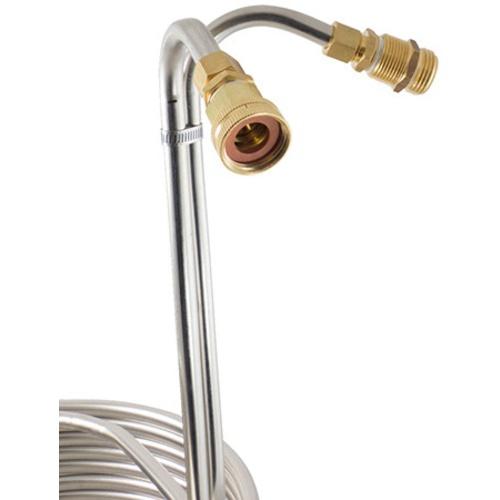

An affordable wort chiller made from 50' of 1/2'' Stainless Steel tubing. Uprights are held together by a single hose clamp rather than welding/soldering. You can use a hose thread adapter to attach to your sink.Note: The inner bend on the coils  have small indentations that are a natural result of the winding process used during manufacturing.  As a bonus these actually help turbulate the cooling water to eliminate laminar flow.Approx. 12.25" diameter, 10.5" to the top coil, 23" to the bend to go over the lip of the kettle.

Read more less

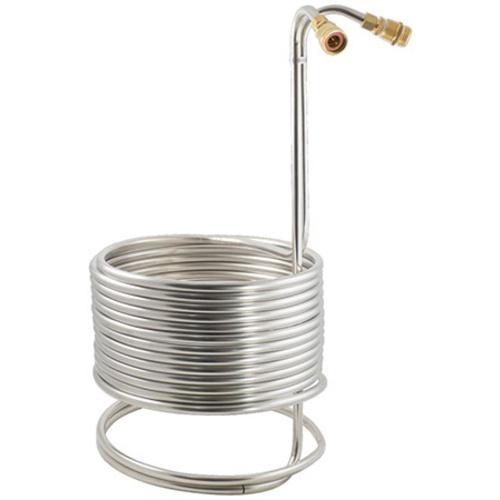

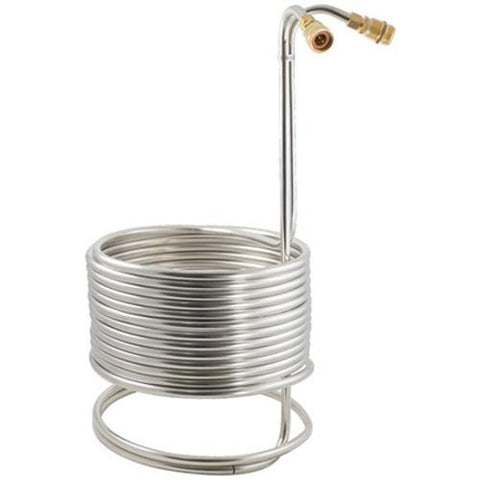

This chiller is made from 25' of 3/8" stainless steel tubing. It includes 8' of vinyl tubing attached to the in and out sides and has a female garden hose fitting on the water in tubing. The uprights of the chiller are help together with a clamp and not soldering. Approximately 10" in diameter, 8" to the top coil, and 15" to the bend to go over your kettle.

Read more less

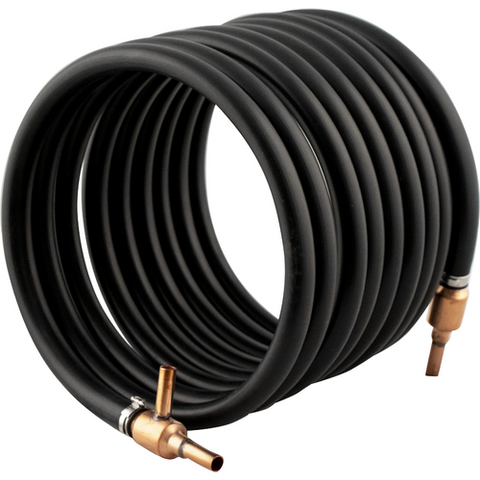

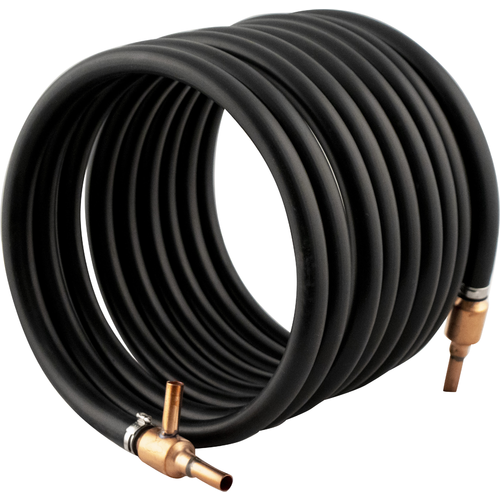

This copper counterflow chiller is probably one of the fastest ways to chill wort.  It can be more effectively flushed out after use in comparison to a plate chiller that has small crevasses to trap hop material.   These chillers are 9" in diameter and about 7" high. The input and output are approximately 3/8" outside diameter (10mm). These can be used with gravity, although a pump is recommended.

Read more less

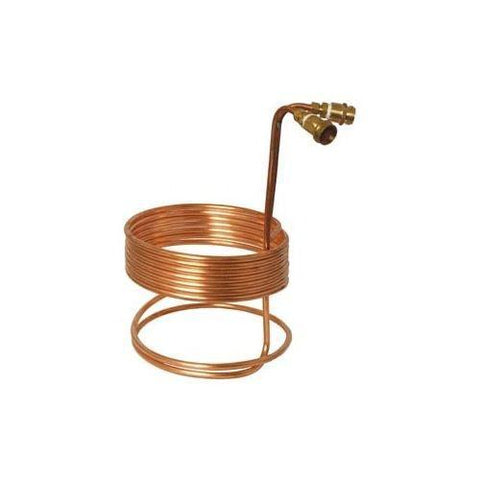

The chiller's coils have been positioned higher so it sits near the top of your wort, making it more efficient resulting in faster chill times. It has 50' of 1/2" copper tubing with connections for garden hoses and measures approximately 10" in diameter, 13" to the top coil, and about 24" tall. The chiller will work with converted kegs and most 10 gallon kettles.

Read more less

This 40 plate chiller is equipped with 3/4" MPT water in/out and 1/2" MPT wort in/out. It measures approximately 8.25 inches long, 4 inches high and 3 inches wide.

Read more less

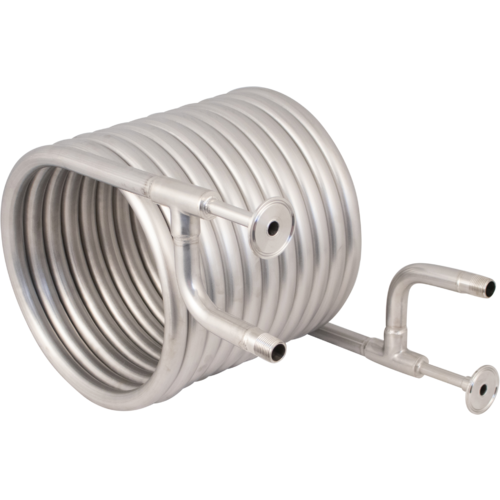

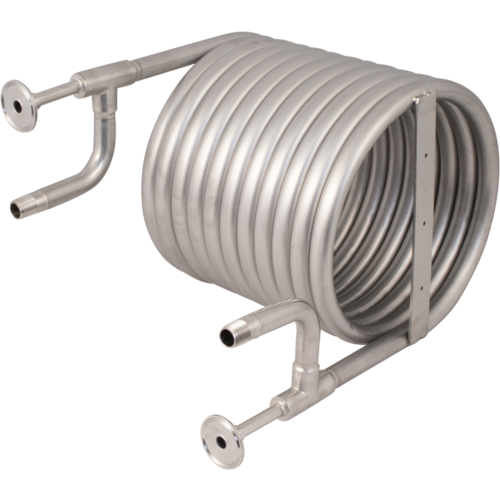

This Brewbuilt® counterflow heat exchanger is an absolute beast when it comes to chilling wort. Made from passivated 304 stainless steel, The Beast has a 30 ft. wort line with 1.5" T.C. connections and a 29.5 ft. coolant line with 1/2" male BSPT connections. The wort line is 1/2" ID so the chiller can withstand high amounts of hop additions without clogging. A mounting bar is welded to the chiller so you can mount it under your work bench or to the frame of your brewing system if desired. Specifications: Beer Line: 30 ft. long Beer Connection: 1.5" tri-clamp Coolant Line: 29.5 ft. long Coolant Connection: 1/2" BSPT Crossbar with pre-drilled mounting holes (4mm) Made from 304 stainless steel Brewbuilt® is a registered trademark owned by MoreFlavor, Inc.

Read more less

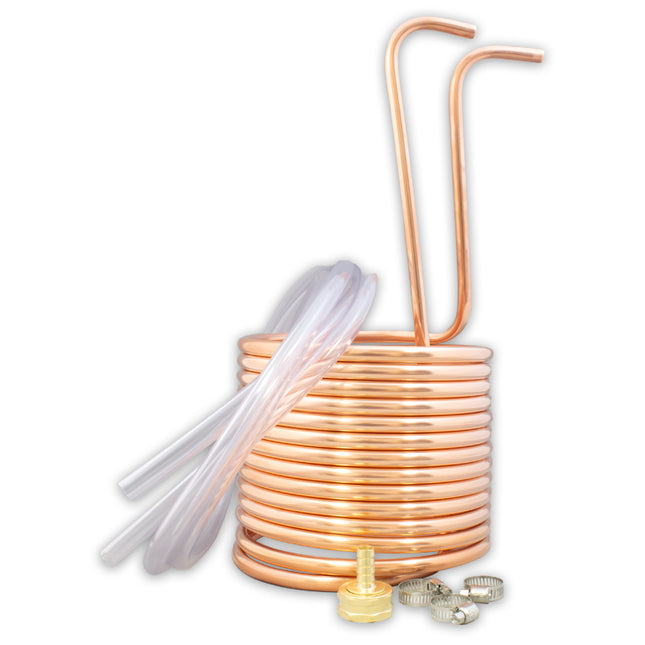

Premium, compact immersion chiller made with 25 feet of 3/8", USA made copper tubing. It is intended to chill up to five gallons of hot wort in under twenty minutes.  Specifications: (2) 5' lengths of clear vinyl tubing (3) strong stainless steel hose clamps (1) 3/4" heavy duty female swivel garden hose fitting Chiller dimensions: 9" coil diameter 7.5" coil height 20" inlet/outlet height

Read more less

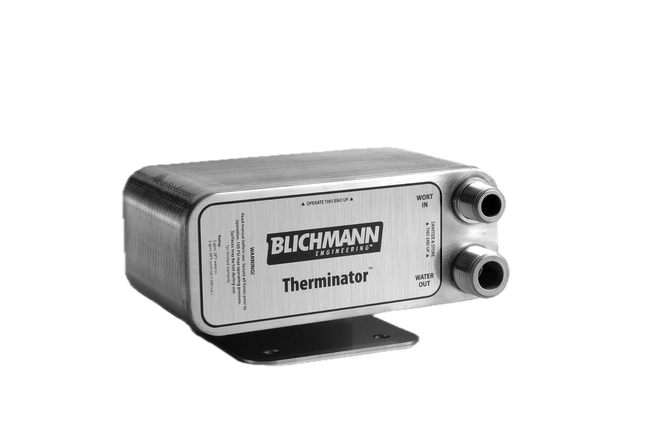

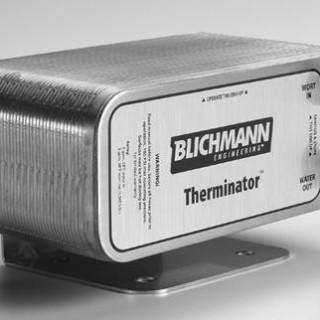

The Therminator™ is the fastest way to chill your wort to yeast pitching temperature and get your fermentation off to a quick, bacteria-free start. Specifications: All 316 stainless steel plates and fittings. Chill like the pros, as the Therminator™ is identical to commercial brewery chillers. Brazed together with pure copper in an oxygen-free furnace, with no potential leaks like a gasketed unit! Chill 10 gallons in 5 minutes to 68°F using 58°F cooling water at 5 gallons per minute (gpm). Ultra compact (7.5" W, 4" D, 3" H) Super-low restriction is ideal for gravity feed. Easy to clean and sanitize. Garden-hose thread connections on the water side means no extra adapters to buy! 1/2" male NPT fittings on wort side mates up with virtually all common hose-connector types, and they're easier to sanitize than female fittings! With the lowest water consumption on the market, it saves you money! Comes with heavy-gauge stainless mounting bracket.

Read more less

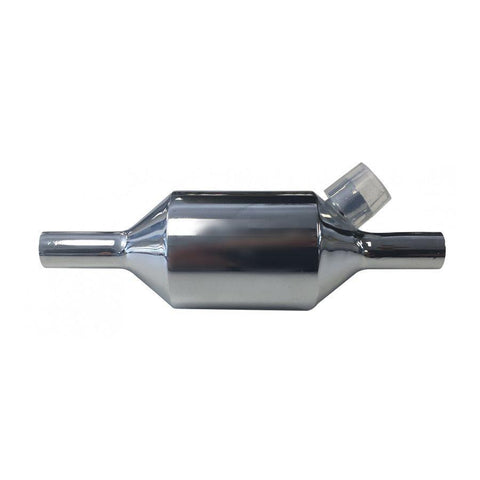

Use in conjunction with the Grainfather Connect Control Box thermometer, for accurate control of your wort transfer temperature through the Grainfather Counter Flow Chiller. Avoid long lag time and off flavors by using the Grainfather Wortometer. Adjust your wort and water flow rates from the Grainfather Counter Flow Chiller by dialing in the exact wort temperature your specific yeast requires.  Requires an 8 mm inner diameter silicon hose.

Read more less

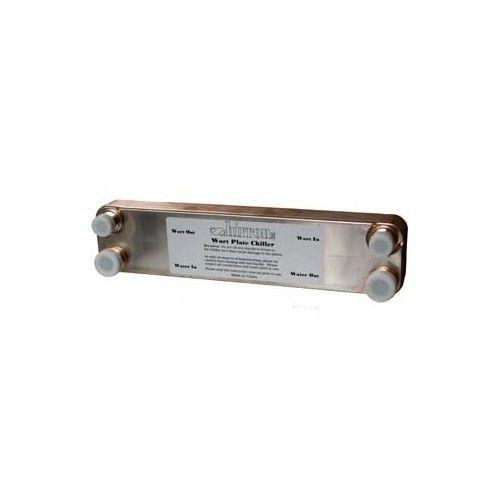

This chiller has 11 stainless steel plates soldered together with copper. Each plate has grooves weaving up and down its face creating more surface area for the wort to travel over. This extra surface area allows more time for the water to cool down the wort. The wort in/out is 1/2" MPT and the water in/out is 3/4" MGHT.

Read more less

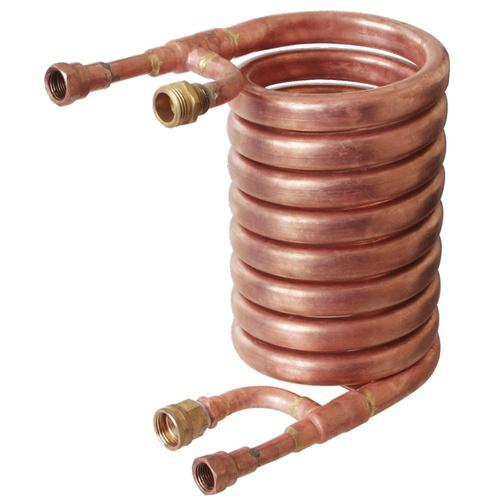

A copper counterflow chiller with connection fittings and attached mounting bracket.  The wort in and out lines are 1/2" fpt connections with the water connections are male and female 3/4" garden hose connections.  The inner tube is made from 12' of 5/8" convoluted (twisted) copper which continually turbulates the wort as it flows through. The outer tube is made from 7/8" copper. This counterflow chiller allows you to pump wort through without having to restrict your pump to slow down flow.10 1/4" height by 11" overall diameter (coils themselves are about 6" in diameter)

Read more less

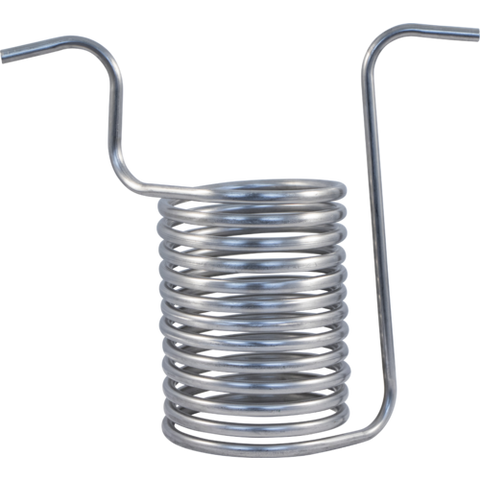

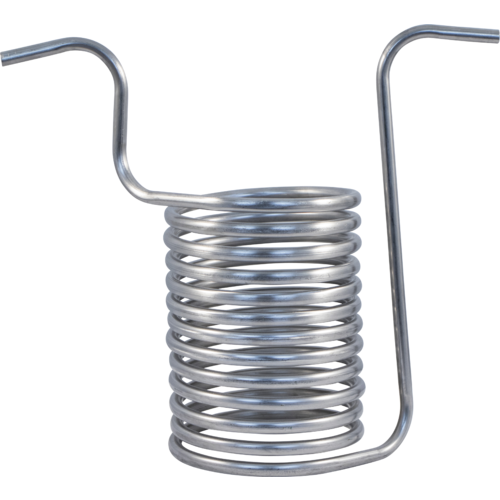

Replacement, stainless steel chiller coil for 35L BrewZilla or DigiBoil. 1/2" ID tubing will fit onto the coil ends.
